GLUI_Control Class Reference

#include <glui.h>

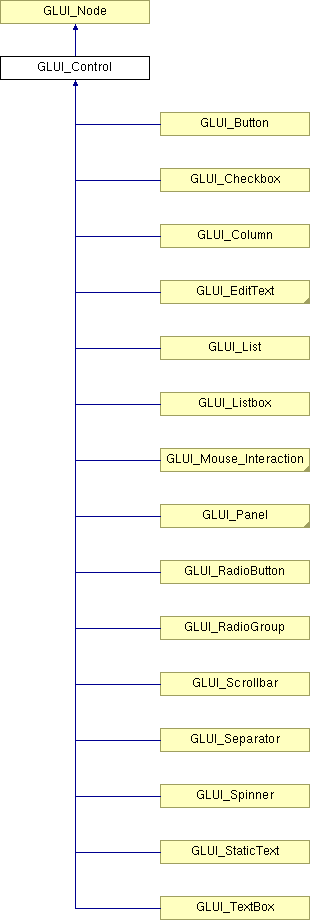

Inheritance diagram for GLUI_Control:

List of all members.

---

Detailed Description

All the GUI objects inherit from GLUI_Control: buttons, checkboxes, labels, edit boxes, scrollbars, etc. Most of the work of this class is in routing events, like keystrokes, mouseclicks, redraws, and sizing events.

Yes, this is a huge and hideous class. It needs to be split up into simpler subobjects. None of the data members should be directly accessed by users (they should be protected, not public); only subclasses.

Public Member Functions
virtual void	set_name (const char *string)
virtual void	set_int_val (int new_int)
virtual void	set_float_val (float new_float)
virtual void	set_ptr_val (void *new_ptr)
virtual void	set_float_array_val (float *array_ptr)
virtual float	get_float_val (void)
virtual int	get_int_val (void)
virtual void	get_float_array_val (float *array_ptr)
virtual int	get_id (void) const
virtual void	set_id (int id)
virtual int	mouse_down_handler (int local_x, int local_y)
virtual int	mouse_up_handler (int local_x, int local_y, bool inside)
virtual int	mouse_held_down_handler (int local_x, int local_y, bool inside)
virtual int	key_handler (unsigned char key, int modifiers)
virtual int	special_handler (int key, int modifiers)
virtual void	update_size (void)
virtual void	idle (void)
virtual int	mouse_over (int state, int x, int y)
virtual void	enable (void)
virtual void	disable (void)
virtual void	activate (int how)
virtual void	deactivate (void)
void	hide_internal (int recurse)
void	unhide_internal (int recurse)
int	can_draw (void)
void	redraw (void)
void	redraw_window (void)
virtual void	align (void)
void	pack (int x, int y)
void	pack_old (int x, int y)
void	draw_recursive (int x, int y)
int	set_to_glut_window (void)
void	restore_window (int orig)
void	translate_and_draw_front (void)
void	translate_to_origin (void)
virtual void	draw (int x, int y)=0
void	set_font (void *new_font)
void *	get_font (void)
int	string_width (const char *text)
int	string_width (const GLUI_String &str)
int	char_width (char c)
void	draw_name (int x, int y)
void	draw_box_inwards_outline (int x_min, int x_max, int y_min, int y_max)
void	draw_box (int x_min, int x_max, int y_min, int y_max, float r, float g, float b)
void	draw_bkgd_box (int x_min, int x_max, int y_min, int y_max)
void	draw_emboss_box (int x_min, int x_max, int y_min, int y_max)
void	draw_string (const char *text)
void	draw_string (const GLUI_String &s)
void	draw_char (char c)
void	draw_active_box (int x_min, int x_max, int y_min, int y_max)
void	set_to_bkgd_color (void)
void	set_w (int new_w)
void	set_h (int new_w)
void	set_alignment (int new_align)
void	sync_live (int recurse, int draw)
void	init_live (void)
void	output_live (int update_main_gfx)
virtual void	set_text (const char *t)
void	execute_callback (void)
void	get_this_column_dims (int *col_x, int *col_y, int *col_w, int *col_h, int *col_x_off, int *col_y_off)
virtual bool	needs_idle (void) const
virtual bool	wants_tabs () const
	GLUI_Control (void)
virtual	~GLUI_Control ()
Public Attributes
int	w
int	h
int	x_abs
int	y_abs
int	x_off
int	y_off_top
int	y_off_bot
int	contain_x
int	contain_y
int	contain_w
int	contain_h
int	active_type
	"GLUI_CONTROL_ACTIVE_..."
bool	active
	If true, we've got the focus.
bool	can_activate
	If false, remove from tab order.
bool	spacebar_mouse_click
	Spacebar simulates click.
long	user_id
	Integer to pass to callback function.
GLUI_CB	callback
	User callback function, or NULL.
float	float_val
int	int_val
float	float_array_val [GLUI_DEF_MAX_ARRAY]
int	float_array_size
GLUI_String	text
void *	ptr_val
int	live_type
bool	live_inited
int	last_live_int
float	last_live_float
GLUI_String	last_live_text
float	last_live_float_array [GLUI_DEF_MAX_ARRAY]
GLUI *	glui
bool	is_container
int	alignment
bool	enabled
GLUI_String	name
void *	font
bool	collapsible
bool	is_open
GLUI_Node	collapsed_node
bool	hidden
int	char_widths [CHAR_WIDTH_HASH_SIZE][2]

---

Constructor & Destructor Documentation

GLUI_Control::GLUI_Control (  void   )  [inline]

GLUI_Control::~GLUI_Control (   )  [virtual]

---

Member Function Documentation

virtual void GLUI_Control::activate (  int  how  )  [inline, virtual]

Reimplemented in GLUI_EditText, GLUI_TextBox, and GLUI_List.

void GLUI_Control::align (  void   )  [virtual]

int GLUI_Control::can_draw (  void   )  [inline]

Return true if it currently makes sense to draw this class.

int GLUI_Control::char_width (  char  c  )

virtual void GLUI_Control::deactivate (  void   )  [inline, virtual]

Reimplemented in GLUI_EditText, GLUI_CommandLine, GLUI_TextBox, and GLUI_List.

void GLUI_Control::disable (  void   )  [virtual]

Reimplemented in GLUI_TextBox.

virtual void GLUI_Control::draw (  int  x, int  y )  [pure virtual]

Implemented in GLUI_Button, GLUI_Checkbox, GLUI_Column, GLUI_Panel, GLUI_Rollout, GLUI_Tree, GLUI_EditText, GLUI_RadioGroup, GLUI_RadioButton, GLUI_Separator, GLUI_Spinner, GLUI_StaticText, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, GLUI_Listbox, and GLUI_Mouse_Interaction.

void GLUI_Control::draw_active_box (  int  x_min, int  x_max, int  y_min, int  y_max )

void GLUI_Control::draw_bkgd_box (  int  x_min, int  x_max, int  y_min, int  y_max )

void GLUI_Control::draw_box (  int  x_min, int  x_max, int  y_min, int  y_max, float  r, float  g, float  b )

void GLUI_Control::draw_box_inwards_outline (  int  x_min, int  x_max, int  y_min, int  y_max )

void GLUI_Control::draw_char (  char  c  )

void GLUI_Control::draw_emboss_box (  int  x_min, int  x_max, int  y_min, int  y_max )

void GLUI_Control::draw_name (  int  x, int  y )

void GLUI_Control::draw_recursive (  int  x, int  y )

void GLUI_Control::draw_string (  const GLUI_String &  s  )  [inline]

void GLUI_Control::draw_string (  const char *  text  )

void GLUI_Control::enable (  void   )  [virtual]

Reimplemented in GLUI_TextBox.

void GLUI_Control::execute_callback (  void   )

void GLUI_Control::get_float_array_val (  float *  array_ptr  )  [virtual]

virtual float GLUI_Control::get_float_val (  void   )  [inline, virtual]

Reimplemented in GLUI_Spinner.

void * GLUI_Control::get_font (  void   )

virtual int GLUI_Control::get_id (  void   )  const [inline, virtual]

Reimplemented in GLUI_Tree.

virtual int GLUI_Control::get_int_val (  void   )  [inline, virtual]

Reimplemented in GLUI_Spinner.

void GLUI_Control::get_this_column_dims (  int *  col_x, int *  col_y, int *  col_w, int *  col_h, int *  col_x_off, int *  col_y_off )

void GLUI_Control::hide_internal (  int  recurse  )

Hide (shrink into a rollout) and unhide (expose from a rollout)

virtual void GLUI_Control::idle (  void   )  [inline, virtual]

Reimplemented in GLUI_Spinner, GLUI_Scrollbar, and GLUI_Rotation.

void GLUI_Control::init_live (  void   )

virtual int GLUI_Control::key_handler (  unsigned char  key, int  modifiers )  [inline, virtual]

Reimplemented in GLUI_Button, GLUI_Checkbox, GLUI_EditText, GLUI_CommandLine, GLUI_Spinner, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, and GLUI_Listbox.

virtual int GLUI_Control::mouse_down_handler (  int  local_x, int  local_y )  [inline, virtual]

Reimplemented in GLUI_Button, GLUI_Checkbox, GLUI_Rollout, GLUI_Tree, GLUI_EditText, GLUI_RadioButton, GLUI_Spinner, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, GLUI_Listbox, and GLUI_Mouse_Interaction.

virtual int GLUI_Control::mouse_held_down_handler (  int  local_x, int  local_y, bool  inside )  [inline, virtual]

Reimplemented in GLUI_Button, GLUI_Checkbox, GLUI_Rollout, GLUI_Tree, GLUI_EditText, GLUI_RadioButton, GLUI_Spinner, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, GLUI_Listbox, and GLUI_Mouse_Interaction.

virtual int GLUI_Control::mouse_over (  int  state, int  x, int  y )  [inline, virtual]

Reimplemented in GLUI_EditText, GLUI_TextBox, GLUI_List, and GLUI_Listbox.

virtual int GLUI_Control::mouse_up_handler (  int  local_x, int  local_y, bool  inside )  [inline, virtual]

Reimplemented in GLUI_Button, GLUI_Checkbox, GLUI_Rollout, GLUI_Tree, GLUI_EditText, GLUI_RadioButton, GLUI_Spinner, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, GLUI_Listbox, and GLUI_Mouse_Interaction.

bool GLUI_Control::needs_idle (  void   )  const [virtual]

Reimplemented in GLUI_Spinner, GLUI_Scrollbar, and GLUI_Rotation.

void GLUI_Control::output_live (  int  update_main_gfx  )

void GLUI_Control::pack (  int  x, int  y )

void GLUI_Control::pack_old (  int  x, int  y )

void GLUI_Control::redraw (  void   )

Redraw this control. In single-buffering mode (drawing to GL_FRONT), this is just a call to translate_and_draw_front (after a can_draw() check). In double-buffering mode (drawing to GL_BACK), this queues up a redraw and returns false, since you shouldn't draw yet.

void GLUI_Control::redraw_window (  void   )

Redraw everybody in our window.

void GLUI_Control::restore_window (  int  orig  )

void GLUI_Control::set_alignment (  int  new_align  )

void GLUI_Control::set_float_array_val (  float *  array_ptr  )  [virtual]

virtual void GLUI_Control::set_float_val (  float  new_float  )  [inline, virtual]

Reimplemented in GLUI_EditText, GLUI_Spinner, and GLUI_Scrollbar.

void GLUI_Control::set_font (  void *  new_font  )

void GLUI_Control::set_h (  int  new_w  )

Reimplemented in GLUI_FileBrowser.

virtual void GLUI_Control::set_id (  int  id  )  [inline, virtual]

Reimplemented in GLUI_Tree.

virtual void GLUI_Control::set_int_val (  int  new_int  )  [inline, virtual]

Reimplemented in GLUI_Checkbox, GLUI_EditText, GLUI_RadioGroup, GLUI_Spinner, GLUI_Scrollbar, and GLUI_Listbox.

void GLUI_Control::set_name (  const char *  string  )  [virtual]

Reimplemented in GLUI_Panel, and GLUI_RadioGroup.

virtual void GLUI_Control::set_ptr_val (  void *  new_ptr  )  [inline, virtual]

virtual void GLUI_Control::set_text (  const char *  t  )  [inline, virtual]

Writes live variable * Reimplemented in GLUI_EditText, GLUI_StaticText, and GLUI_TextBox.

void GLUI_Control::set_to_bkgd_color (  void   )

int GLUI_Control::set_to_glut_window (  void   )

void GLUI_Control::set_w (  int  new_w  )

Reimplemented in GLUI_FileBrowser.

virtual int GLUI_Control::special_handler (  int  key, int  modifiers )  [inline, virtual]

Reimplemented in GLUI_EditText, GLUI_CommandLine, GLUI_Spinner, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, GLUI_Listbox, and GLUI_Mouse_Interaction.

int GLUI_Control::string_width (  const GLUI_String &  str  )  [inline]

int GLUI_Control::string_width (  const char *  text  )

void GLUI_Control::sync_live (  int  recurse, int  draw )

void GLUI_Control::translate_and_draw_front (  void   )

void GLUI_Control::translate_to_origin (  void   )  [inline]

void GLUI_Control::unhide_internal (  int  recurse  )

If recurse is true, we go to children as well

virtual void GLUI_Control::update_size (  void   )  [inline, virtual]

Reimplemented in GLUI_Button, GLUI_Checkbox, GLUI_Panel, GLUI_Rollout, GLUI_Tree, GLUI_EditText, GLUI_RadioButton, GLUI_Spinner, GLUI_StaticText, GLUI_TextBox, GLUI_List, GLUI_Scrollbar, GLUI_Listbox, and GLUI_Mouse_Interaction.

virtual bool GLUI_Control::wants_tabs (  void   )  const [inline, virtual]

Reimplemented in GLUI_TextBox.

---

Member Data Documentation

bool GLUI_Control::active

If true, we've got the focus.

int GLUI_Control::active_type

"GLUI_CONTROL_ACTIVE_..." "activation" for tabbing between controls.

int GLUI_Control::alignment

GLUI_CB GLUI_Control::callback

User callback function, or NULL.

bool GLUI_Control::can_activate

If false, remove from tab order.

int GLUI_Control::char_widths[CHAR_WIDTH_HASH_SIZE][2]

GLUI_Node GLUI_Control::collapsed_node

bool GLUI_Control::collapsible

int GLUI_Control::contain_h

int GLUI_Control::contain_w

int GLUI_Control::contain_x

int GLUI_Control::contain_y

bool GLUI_Control::enabled

Is this control grayed out?

int GLUI_Control::float_array_size

float GLUI_Control::float_array_val[GLUI_DEF_MAX_ARRAY]

float GLUI_Control::float_val

Our float value

void* GLUI_Control::font

Our glutbitmap font

GLUI* GLUI_Control::glui

Our containing event handler (NEVER NULL during event processing!)

int GLUI_Control::h

Onscreen coordinates

bool GLUI_Control::hidden

int GLUI_Control::int_val

Our integer value

bool GLUI_Control::is_container

Is this a container class (e.g., panel)

bool GLUI_Control::is_open

float GLUI_Control::last_live_float

float GLUI_Control::last_live_float_array[GLUI_DEF_MAX_ARRAY]

int GLUI_Control::last_live_int

GLUI_String GLUI_Control::last_live_text

bool GLUI_Control::live_inited

int GLUI_Control::live_type

GLUI_String GLUI_Control::name

The name of this control

void* GLUI_Control::ptr_val

A pointer to the user's live variable value

bool GLUI_Control::spacebar_mouse_click

Spacebar simulates click.

GLUI_String GLUI_Control::text

The text inside this control

long GLUI_Control::user_id

Integer to pass to callback function. Callbacks

int GLUI_Control::w

Onscreen coordinates

int GLUI_Control::x_abs

int GLUI_Control::x_off

int GLUI_Control::y_abs

int GLUI_Control::y_off_bot

int GLUI_Control::y_off_top

---

The documentation for this class was generated from the following files:

• glui.h
• glui_control.cpp

---
