# Pretty Pictures, OpenGL, Taylor Series, and Physics

CS 480 Lecture, Dr. Lawlor

## Pretty Pictures of Simulations

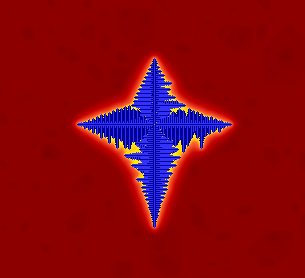

Ice solidification simulation.  Red is the liquid area, with temperature shown shading to yellow (hottest).  Blue is solidified crystal; I get to choose the crystal planes, in this case just cartesian axes.

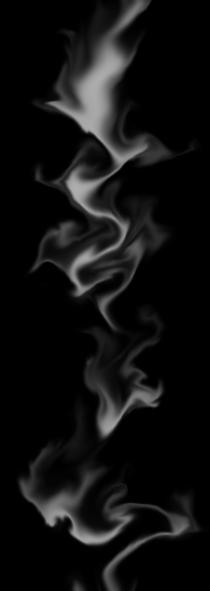

A fluid dynamics simulation: white paint sheared between layers of darkness.

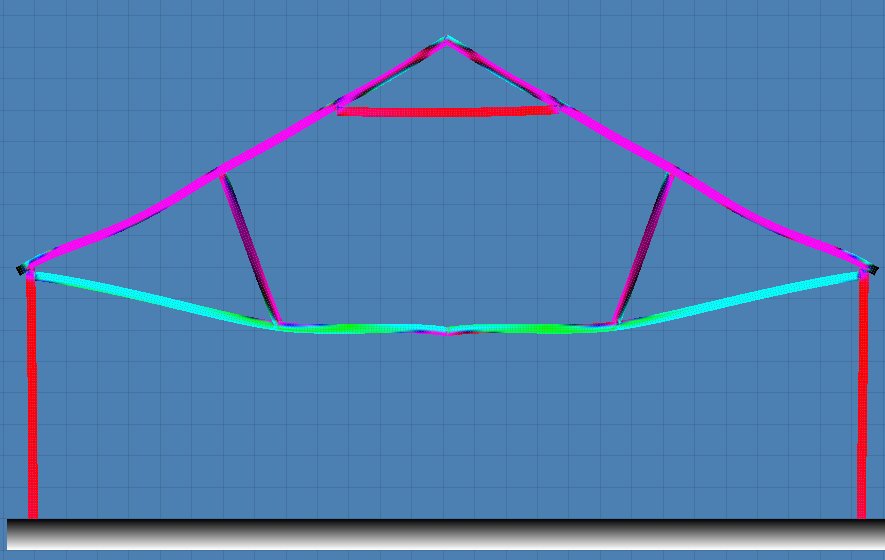

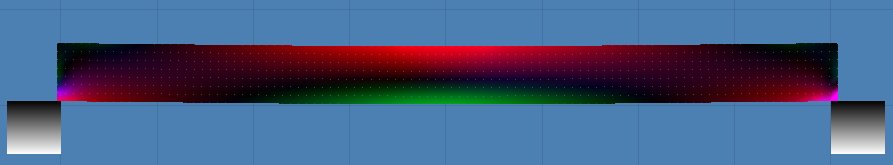

A finite element solid mechanics simulation: wood in compression (red), tension (green), and shear (blue).  Gray gradients are fixed.  Unlike most of my simulations, this one is actually dimensioned properly, and verified against the real world!

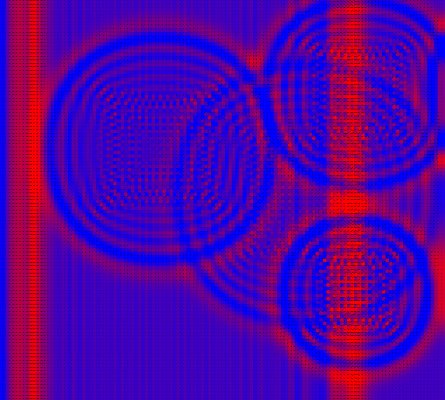

A shallow water simulation, like drops on a pond.  The little drops expand outward, pass through one another, and reflect off the walls.

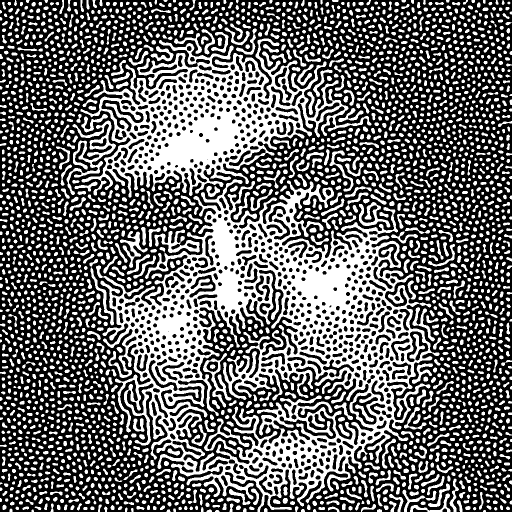

A photograph toned using reaction-diffusion equations.

## Basic OpenGL Particle Rendering

Here's a tiny OpenGL program to splat some random points onto the screen:
`/**  Tiny OpenGL/GLUT example program  Dr. Orion Sky Lawlor, olawlor@acm.org, 2009-01-21 (Public Domain)*/#include "GL/glut.h" /* windows, mice, etc.  http://freeglut.sourceforge.net */#include <stdlib.h> /* for "rand" */#include <stdio.h> /* for printf *//* Random Float: Return a random number between 0 and 1 */float rf(void) { return (rand()&0xffff)*(1.0/0xffff); }void display(void) /* Draw everything in our window */{	glClearColor(0.3,0.5,0.7,1.0); /* clear to a nice blue color */	glClear(GL_COLOR_BUFFER_BIT);		glBegin(GL_POINTS);	srand(1);	for (int p=0;p<100000;p++) {		glColor3f(rf(),rf(),rf());		glVertex3f(2*rf()-1,2*rf()-1,2*rf()-1);	}	glEnd();		glutSwapBuffers(); /* display everything we've rendered so far */	glutPostRedisplay(); /* continual animation */}int main(int argc,char **argv) {	glutInit(&argc,argv);  /* set up GLUT */	glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGBA | GLUT_DEPTH);	glutCreateWindow("TinyDemo"); /* make a window */	glutDisplayFunc(display); /* here's how to draw the window */	glutMainLoop(); /* start drawing */}`
If that wasn't crystal clear, work your way through the NeHe tutorials on OpenGL!

## Taylor Series

Check out the MathWorld article, or Wikipedia.
